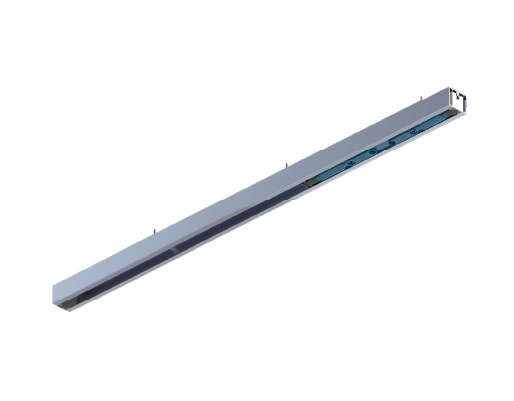

D–way
The D-way system features Ironlev levitation technology for smooth, silent movement, enhanced by a coated sliding profile and a special lower guide. Its magnetic soft-closing ensures precision and comfort, while ceiling or wall mounting options provide maximum installation flexibility.
Load capacity
80 kg
Overall section (mm)
53x46

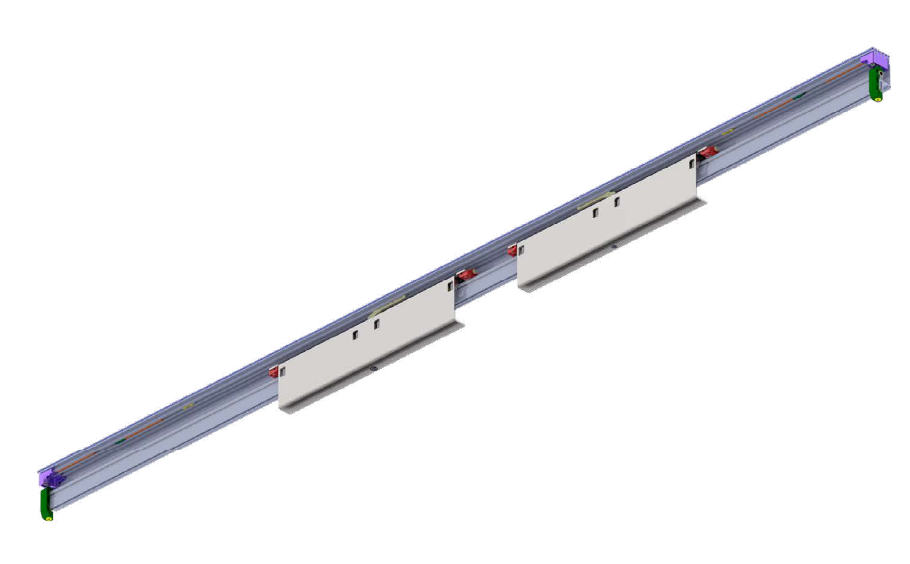

Party
The Party system is an interior partition solution for large sliding doors, combining elegant design and smooth movement. Its coated profile, special guide, and magnetic soft-closing ensure silent, precise operation, with flexible installation options — ceiling, built-in, or wall-mounted, single or double rail.
Max. Load capacity
200 kg
Overall section (mm)
42,4x110
OUR TECHNOLOGY
MOVING LIGHTNESS
The window moves along the rail effortlessly and without any sliding friction, overcoming the weight limits of traditional wheeled systems. Pulling force of 2 kg for a 600 kg doorTested with doors up to 1500 kg
MODULARITY
The composition of the sliders allows to determine the number of sliders as a function of the sash weight.
Unlike traditional wheel systems, magnetic levitation distributes the weight of profile and glass evenly among each slider, making it possible to design large openings with minimal frames. Single or double module.
RELIABILITY
The extremely low wear of the elements composing the slider ensures high durability and lifetime. The system is designed and tested for superior performances in terms of corrosion resistance.
N° 100.000 cycles tested
1.000 hours in salt spray environment
SAFETY

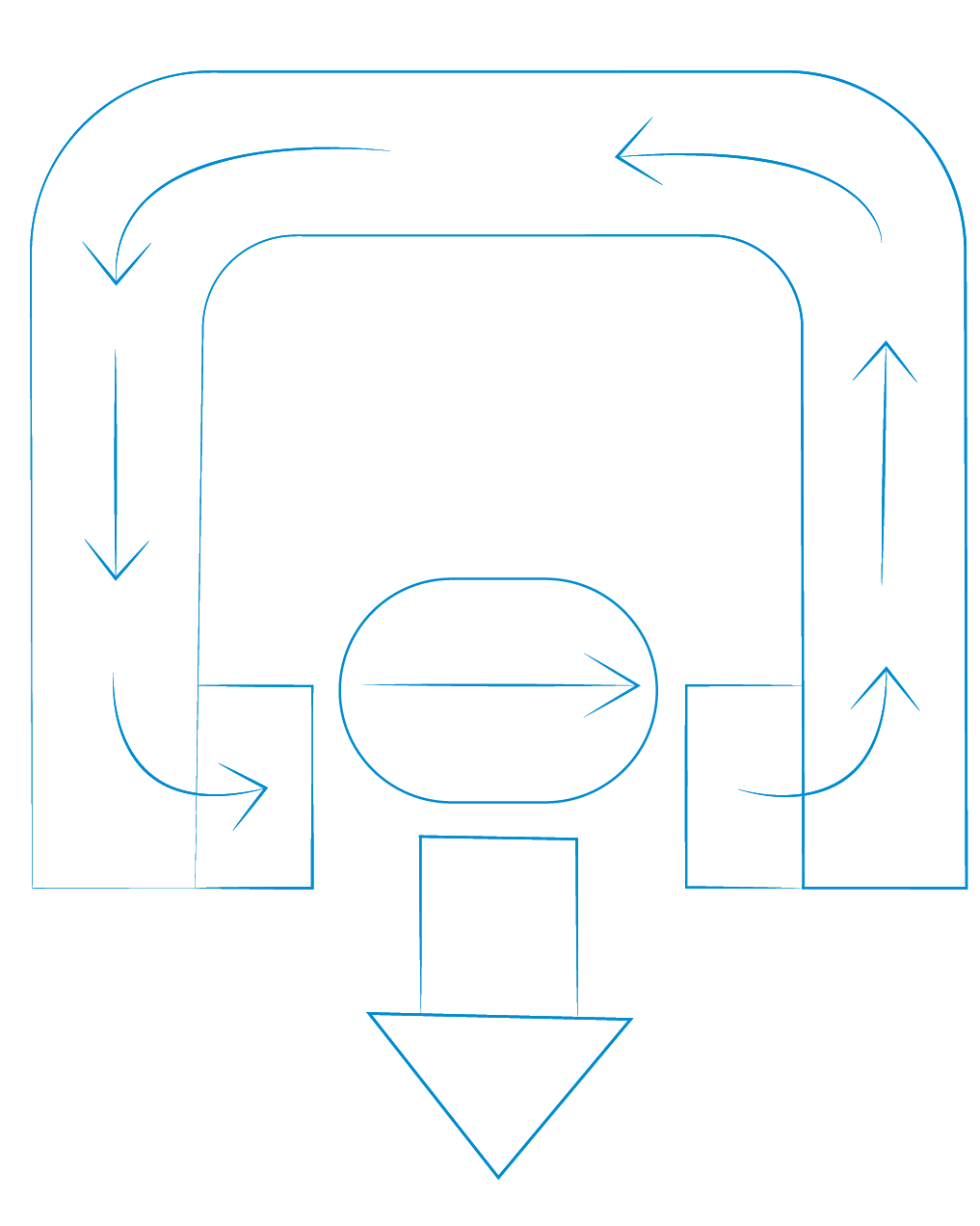

The slider is intrinsically safe: the magnetic field is totally confined insider slider section, eliminating external magnetic dispersions. This allows an adoption inside domestic environments by placing the system in the lower node, inside the frame.
μT within standards
EASY INSTALLATION AND ASSEMBLY
The Ironlev system is designed for easy and safe installation. The sliders are assembled by using special accessories that guide the system in the proper position. In addition, the system includes junction and rail fixing elements.
